Schneider Electric - Accionamiento termoeléctrico 230V

Schneider Electric España S.A
CopiarCopiar

Inicia sesión o crea una cuenta para ver el precio correcto y ejecutarlo

Especificaciones esenciales

  • Sistema de bus EIB/KNX - no

  • Radio con sistema de bus KNX - no

  • Sistema de bus KNX Secure - no

  • Sistema de bus KNX Secure-RF (radiofrecuencia) - no

  • Frecuencia de radio de sistema de bus - no

Packaging

  • 1 Unid.

Referencia del fabricante

MTN639125

Ref.Sonepar

148123

EAN

3606485011561

Sistema de bus EIB/KNX:

no

Radio con sistema de bus KNX:

no

Sistema de bus KNX Secure:

no

Sistema de bus KNX Secure-RF (radiofrecuencia):

no

Frecuencia de radio de sistema de bus:

no

Sistema de bus LON:

no

Sistema de bus Powernet:

no

Otros sistemas de bus:

Ninguno

Radiofrecuencia bidireccional frecuente:

no

Método de montaje:

Válvula de radiador

Conexión de bus incluida:

no

Control de la temperatura con control continuo integrado:

no

Botones para funcionamiento manual en el accionamiento:

no

Indicación de temperatura y recorrido:

no

Función maestro/esclavo:

no

Número de entradas digitales:

0

Tensión nominal:

230 V

Suministro de tensión mediante bus:

no

Grado de protección (IP):

IP54

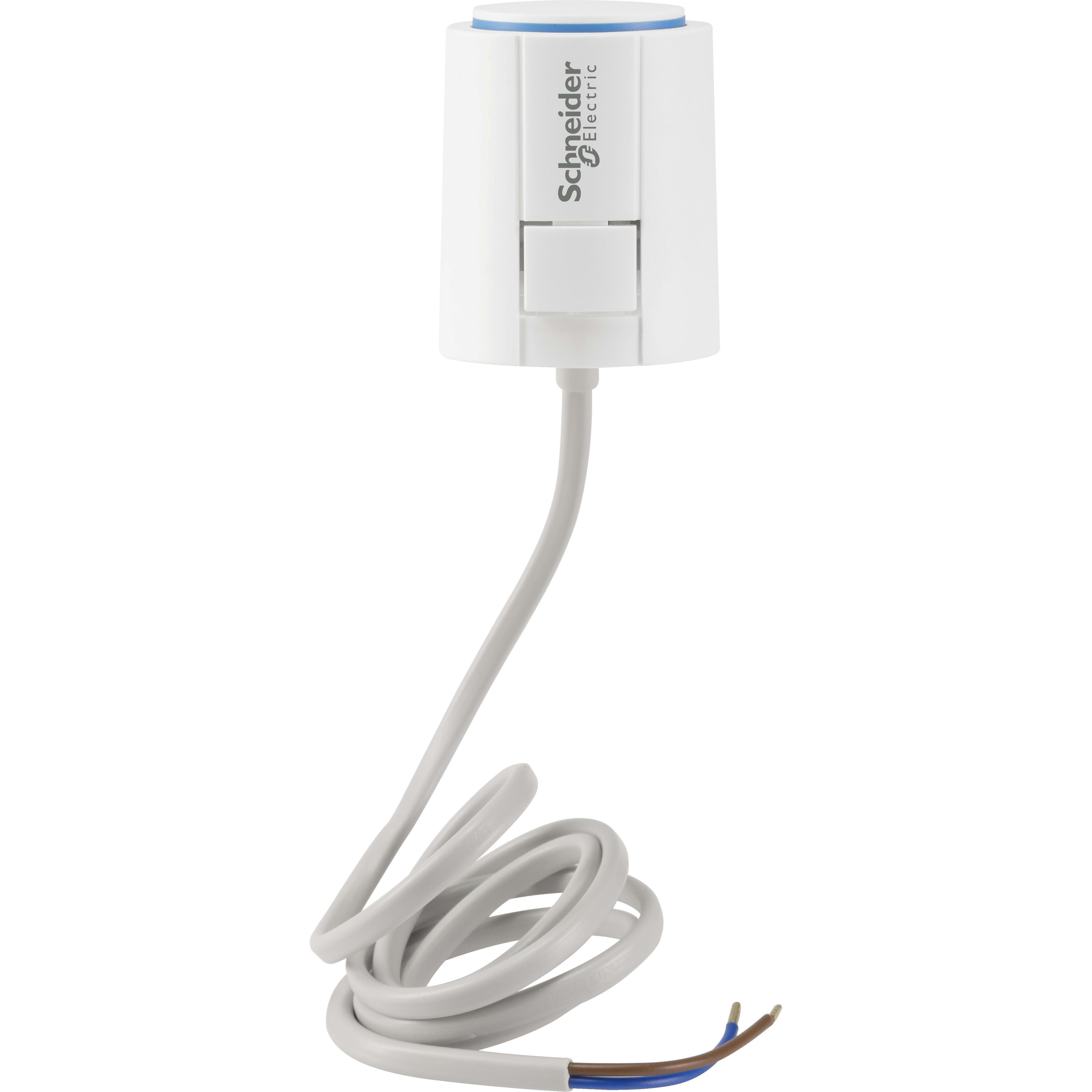

Thermoelectric valve drive 230 V. Thermoelectric valve drive for opening and closing valves. For 2-step or PWM control of heating, air conditioning and ventilation systems, individual room control of surface heaters, control of heating circuit distributors. For radiators, convector heaters, cooling ceilings. Operation is carried out by the heating actuator REG-K/6x24/230/0.16A, fan coil actuator REG-K or a room temperature control unit (230 V) with 2-step or PWM output. Valve adapters permit compatibility with a variety of valve bodies and heating circuit distributors. Functions: First-open function: The drive is factory-set to de-energised open. This allows the heating to be operated during the building shell phase. De-energised closed. Functional display (open, closed, intermediate settings). Adjustment control. Plug-in connecting cable. Plug-in assembly. Supply voltage: AC 230 V, 50/60 Hz. Starting current: max. 350 mA for max. 100 ms. Power consumption: 1 W. Lift: approx. 4 mm. Running time: 3.5 min for 4 mm. Positioning force: 100 N ± 5 %. Circulating medium temperature: 0-100°C. Type of protection: IP 54 / II, in all installation positions. Connecting cable: 1 m, 2x0.75 mm² pluggable. Dimensions: 59.2x44.3x56 mm (HxWxD). Colour: polar white.
