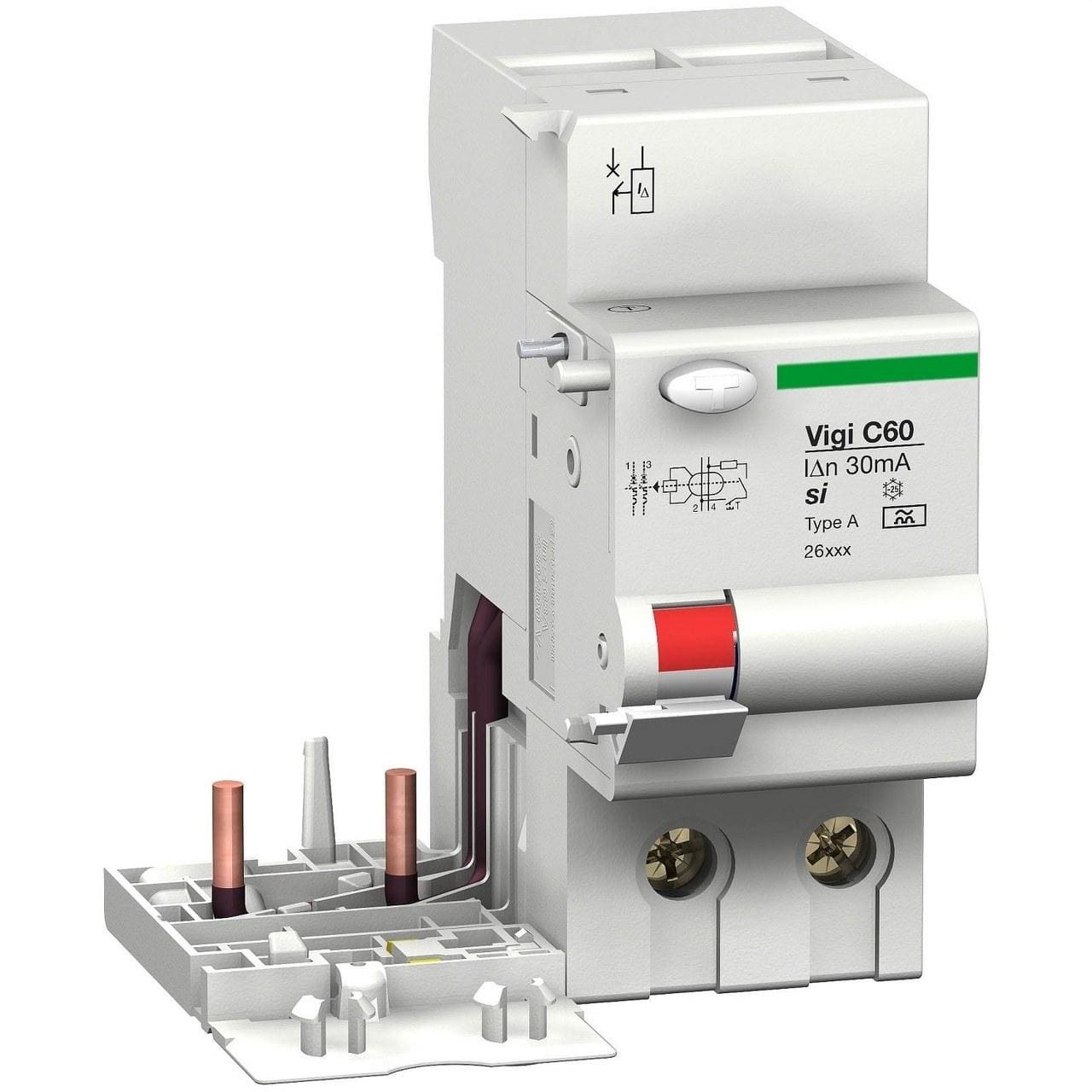

Schneider Electric - Bloque diferencial VIGI C60/40 2P 30mA clase A SI instantáneo
Inicia sesión o crea una cuenta para ver el precio correcto y ejecutarlo
Especificaciones esenciales
Tensión nominal desde/hasta - 220...415 V
Corriente nominal - 40 A
Intensidad nominal de fallo ajustable - no
Intensidad nominal de fallo desde/hasta - 0.03...0.03 A
Tiempo máx. de retardo - 0 ms
Packaging
1 Unid.
Referencia del fabricante
26761
Ref.Sonepar
74348
EAN
3303430267614
Tensión nominal desde/hasta:
220...415 V
Corriente nominal:
40 A
Intensidad nominal de fallo ajustable:
no
Intensidad nominal de fallo desde/hasta:
0.03...0.03 A
Tiempo máx. de retardo:
0 ms
Retardo ajustable:
no
Número de polos:
2
Tipo de corriente de fuga:
Otros
This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 40A. The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage dependent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product is compliant with IEC 60947-2 standard. The Ue rated operational voltage is from 220VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 4. The dimensions are (W) 72mm x (H) 87mm x (D) 74mm. The weight is 0.12kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 70°C.
